Friday 30 October 2015

A possible bug in QGIS 2.12

Working with my maps of a segmented DEM showing average slope direction and magnitude, and curvature with arrows, I noticed it broke once I upgraded to QGIS 2.12.
Unless there has been some change in the syntax of expressions that I didn't get from the QGIS 2.12 changelog I suspect a bug.

I made a minimal example, which I shared via GIS Stack Exchange and QGIS issue tracker.

QGIS 2.10.1. The width of the lines are proportional to the magnitude of the slope, and the colours are proportional to the 'longitudinal curvature' with blue for concave slopes and red for convex. No prizes for guessing the location since it's labelled on the maps at the links above.
QGIS 2.12. Styling is lost for the slope magnitude and longitudinal curvature, but slope direction is still shown.

Friday 23 October 2015

Georeferencing a map from 1574

I saw the National Library of Wales had digitised a map of Wales produced circa 1574 by Humphrey Llwyd, and uploaded a copy to Wikimedia commons.

I decided to try georeferencing it to a modern map based on OpenStreetMap data using the QGIS georeferencer:

Overlaying 1574 map with transparency shows the variability in the accuracy of the map. full-size version

Removed modern town names to show 1574 map more clearly. full-size version


I chose a variety of places around Wales and the border areas shown on the map, including Cardiff, Newport, St. Davids, Aberystwyth, Holyhead, Liverpool, Shrewsbury, Hereford.

The result looks more accurate than I expected, with Aberystwyth and Shrewsbury being almost exactly referenced, and several other places with small errors.


According to the author Graham Robb, Whitchurch in Shropshire was the prime longitude meridian for the British Druids in the Iron Age, and is named as "Mediolanum" by Ptolemy in the 2nd century. Aberystwyth (or more exactly, the Pendinas hillfort) was also an important location within their navigation system apparently, being both on a longitude meridian and latitude paralell.

Update: QGIS layer blending

Changing the layer blending method to a "Hard light" overlay rather than semi-transparency makes for a slightly clearer result I think:
full-size version



Wednesday 21 October 2015

The glacial forms of Greg Crater

As an example, in part of the HRSC tile h2224, Colin Souness in his PhD work found a number of glacial like forms in the northern wall of the crater.

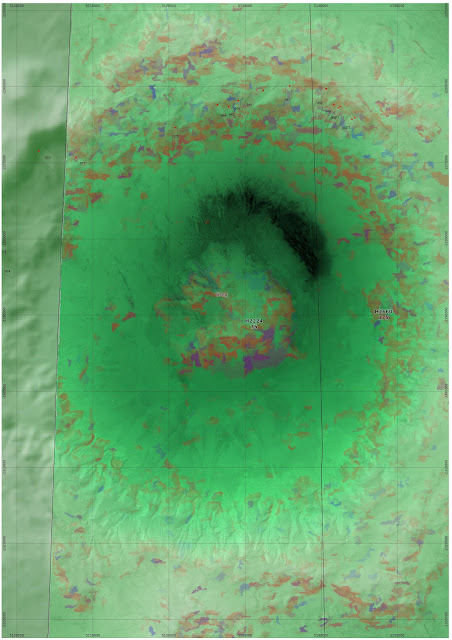

Greg crater is located at 38.5°S, 113.1°E and has a diameter of 66km.

Download larger version
The southern wall of the crater tends to be covered in gullies. There is a detailed summary of it on the website of the Planetary Science Institute, Tucson, based on the W. Hartmann et al paper.

Now looking at the classifier, labelling extent areas above ln(K) > 10 and head areas above ln(K) > 12. I have used "Addition" blending in QGIS to show areas that are classified in both in purple.

Download larger version
There are potential glacier source areas above the Souness objects, but there are many other areas that are also marked out as source areas that do not have glacier like forms catalogued by Souness, such as lower down the north face, the east face and the south face of the central mountain.
Download larger version

Google Earth can be useful to visualise Mars, selecting the CTX image mosaic (the 'context' camera with 6m resolution from Mars Reconnaisance Orbiter):


It is also possible to see where HiRISE coverage exists (red outlines):

Tuesday 20 October 2015

The Green, Green, QGIS of Mars (Part 2)

Here is the southern mid-latitudes of Mars, in the same colour scheme as the previous post showing the northern mid-latitudes:

The lowest elevation area of Mars, the Hellas basin has areas of bright terrain which makes the colour scheme a little confusing. Download larger version.

The Green, Green, QGIS of Mars

There are many blog posts on the Internet and even scientific papers on the evils of the spectral/rainbow colour palette for continuously varying data.

The series of 6 by Robert Simmon on NASA's Earth Observatory website is particularly worth reading and references many interesting and potentially useful sources.

Incidentally while looking for that, I saw this Image of the Day of a landslide onto a glacier in the Yukon in Canada. I wonder how often they have landslides on Mars.

Thus, I now show you the north of Mars, with the elevation encoded in a single hue palette and again overlaid with "Hard Light" on the Mars Global Surveyor image mosaic.

This will not be perfect for a quantitative visualisation, since it is not possible to distinguish between intrinsically darker areas and areas that are low in elevation.

I choose the green colour, because it leaves red and blue free to plot the classifier function values for areas similar to glacier head and extents.

The various individual HRSC tiles also have the same kind of colour palette of DTM elevation scaled locally overlaid on the nadir image HRSC. Download a larger image of this here.

If there's a North there must be a South

See also previous post for the North.

Here is the southern hemisphere of Mars. Again, I have used the same equirectangular coordinates optimised for 40° latitude.

The Souness et al. glacier like forms (such as QGIS plots them at this scale) are marked and numbered.






Monday 19 October 2015

Lots of planets have a North

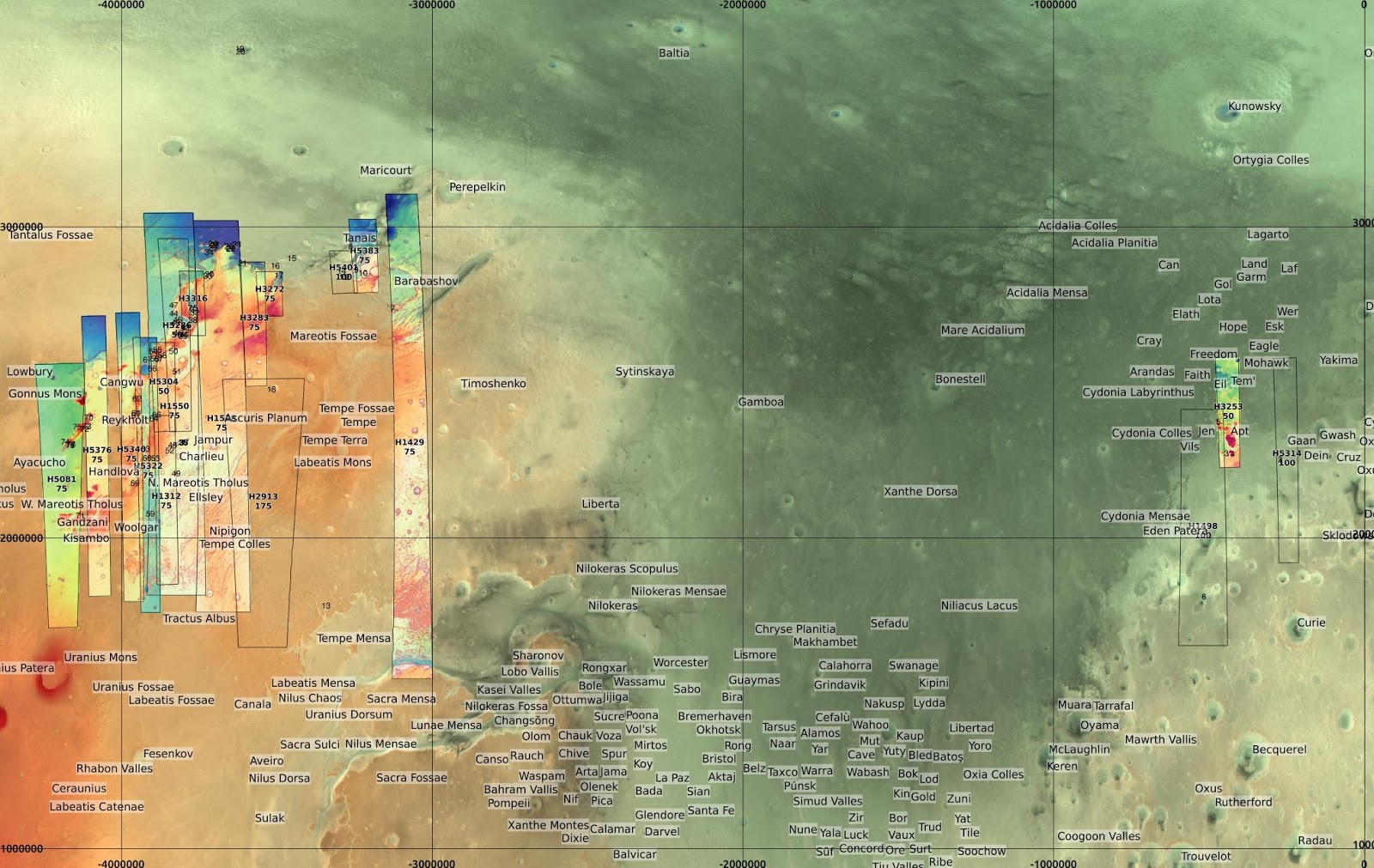

Here is the North of Mars, showing the Mars Express High Resolution Stereo Camera tiles used in my MSc dissertation, colour-coded by elevation, but also with the output of the Bayesian classifier measuring the similarity to Colin Souness's glacial form.

This is possibly a bit too colourful and the classifier output isn't really useful at this scale. The segmented DTM has red indicating similarity to glacier 'head' areas, green for 'context' areas (9x area of extent) and blue for extents.

I use QGIS to blend the elevation with an underlying nadir image also from HRSC with "Hard Light". I am not sure whether the developers of QGIS intended the Red Dwarf reference.


The coordinates are in an equirectangular projection in metres optimised for a standard latitude of 40°.


Tuesday 13 October 2015

The Lost land of Lyonesse revisited

In a previous post, I mentioned the work of Shennan and Horton (2002) about sea level change around Britain through the Holocene.

I showed a visualisation of the West Cornwall coastline as it may have been around 12,000 years before present.

After downloading further bathymetry via the UKHO INSPIRE portal, I present an updated version covering the whole area around Cornwall.

Much of this came as .csv point data, which I had to grid, and use the QGIS Concave Hull plugin from the Processing toolbox to restrict the interpolated grid to where there was data.

In some areas, there are gaps in what is currently available at high resolution so it falls back to low-resolution data.

Based on my reading off the graphs in Shennan and Horton, the sea level rise at this time should be similar across the area covered here:

Site Number Site Name Lat Long RSL 1kyr RSL 2kyr RSL 3kyr RSL 4kyr RSL 5kyr RSL 6kyr RSL 7kyr RSL 8kyr RSL 9kyr RSL 10kyr RSL 11 kyr RSL 12 kyr

42 Pembroke 51.8 -5.1 -0.8 -1.6 -2.4 -3.2 -4 -9.2 -14.4 -19.6 -24.8 -30 -35.2 -40.4
43 Glamorgan 51.5 -3.7 -2 -4 -6 -8 -10 -13.6 -17.2 -20.8 -24.4 -28 -31.6 -35.2
51 Devon 50.4 -3.5 -1 -2 -3 -4 -5 -10 -15 -20 -25 -30 -35 -40
52 Cornwall 50.2 -5.5 -1.4 -2.8 -4.2 -5.6 -7 -11.6 -16.2 -20.8 -25.4 -30 -34.6 -39.2



It is clear there were substantial areas of land that were disappearing in the millenia after the reoccupation of Britain after the last glacial maximum (with this map corresponding to the cold spell of the Younger Dryas).
In the period of time, between 12kyr BP and 8kyr BP sea level rose by 20m, which corresponds to half a metre every century.
Especially in the large expanses of gently sloping terrain off the north coast, it would be likely that coastal retreat would have been noticeable by people within a single lifetime.

A version speculating about woodland colonising the lowlands:
